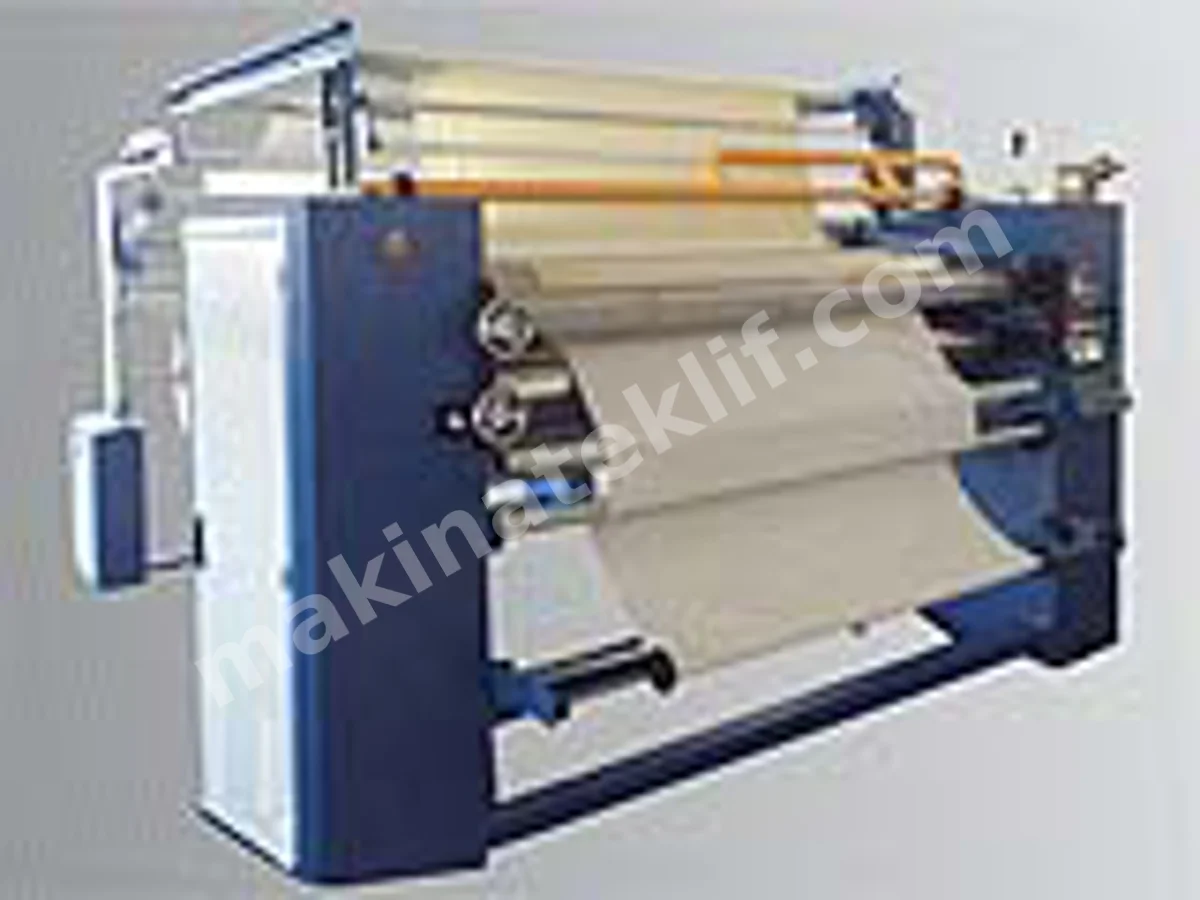

Flame Laminating Machine

Flame Laminating Machine is an industrial laminating system designed for bonding foam, felt, polyester-based materials, fabrics, artificial leather, and similar products with high efficiency. Using a controlled flame generated by propane gas or natural gas, the machine melts the surface of the material to create a strong and durable lamination bond.

Technical Specifications

• Standard roller width: 2000 mm
• Standard machine dimensions (W × L × H): 3270 × 5500 × 2200 mm
• Available working widths: 2000, 2100, 2200, 2300, and 4200 mm
• Fuel type: Propane gas or natural gas
• Minimum gas pressure: 300 mbar
• Power consumption: 4 kW
• Operating air pressure: 6 bar
• Production speed: 7-15 meters/minute, depending on the material
• Industrial-grade construction suitable for continuous production

Operating Principle

The machine generates a controlled flame using propane gas or natural gas. The flame melts the surface of polyester-containing foam, felt, and similar materials, allowing them to be bonded securely to fabrics, artificial leather, and other substrates without the need for additional adhesives.

Installation Requirements

• A ventilation system is required to remove smoke and odors generated during the lamination process.
• An open-loop water cooling system must be connected to cool machine components exposed to high temperatures.
• The use of one chiller water cooling unit is recommended.

Applications

• Automotive industry
• Carpet manufacturing
• Home textiles
• Upholstery and seat cover production
• Artificial leather lamination
• Technical textile applications
