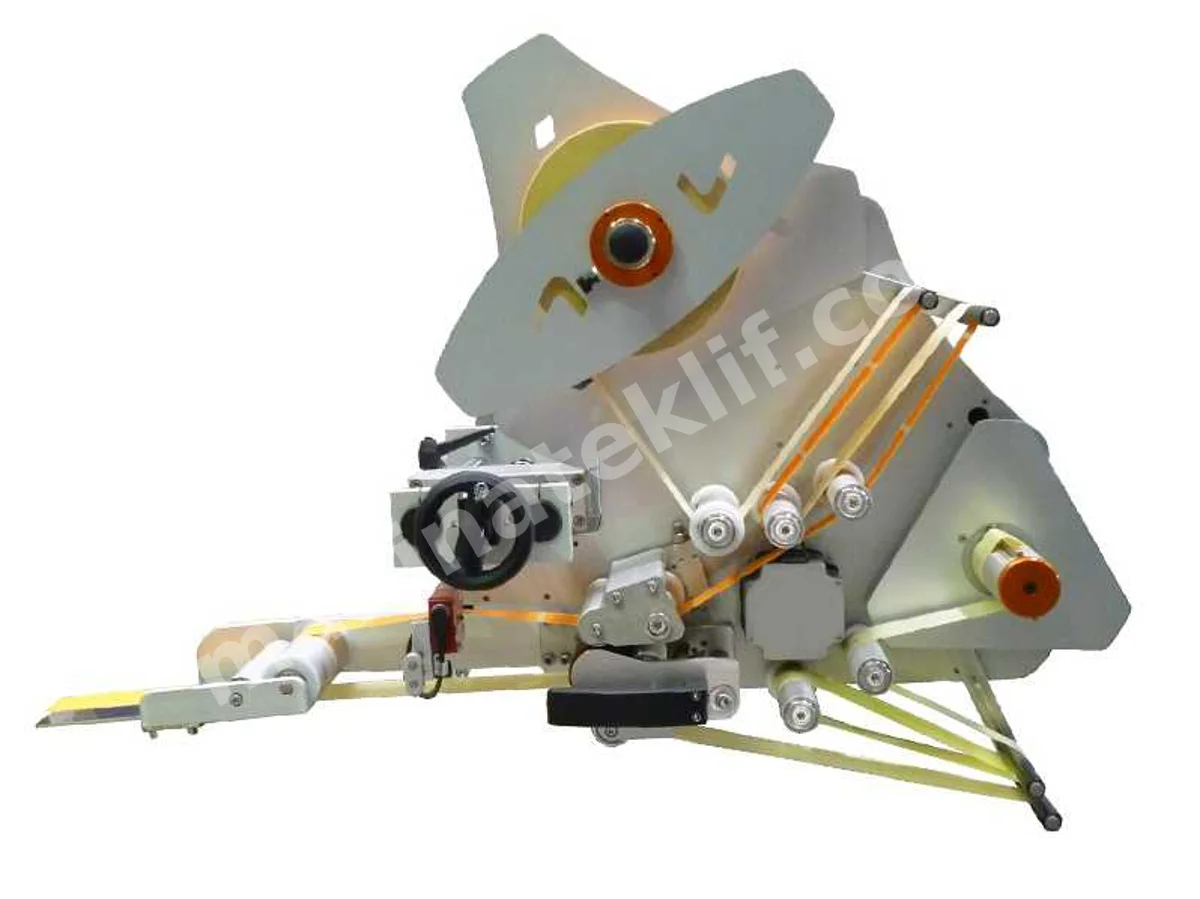

Esperto Pack Labels LabelX RM Automatic Labeling Unit

Esperto Labeling Solutions offers an advanced labeling system optimized for industrial production lines, featuring step motor control and microprocessor-based technology.

Key Features

• Electronic Control: User-friendly interface with a touchscreen control panel.
• Label Height Options: Label height options ranging from 10–140 mm or 30–250 mm, including the backing liner.
• High Speed: Maximum speed of 80 m/min for 140 mm labels and 50 m/min for 250 mm labels.
• Powerful Motor: Stable, precise and high-performance operation with an Ever Elektronika step motor.
• Roll Capacity: Supports label rolls with a maximum outer diameter of 300 mm.
• Label Detection: Height-adjustable sensor for precise label detection. A special sensor may be required for transparent labels.
• Additional Functions: Motorized rewinder, missing-label skip system, memory for up to 100 products and label counter.

Technical Specifications

• Power Supply: Single-phase 230 V, 50/60 Hz
• Power Consumption: 400 W
• Label Height Range: 10-140 mm or 30-250 mm
• Labeling Speed: 80 m/min (140 mm) / 50 m/min (250 mm)
• Roll Outer Diameter: Max. 300 mm
• Control Unit: Touchscreen panel with memory function

Note: Some technical specifications may vary depending on the configuration. Please confirm with our sales team before placing an order.

Line Integration & Optional Modules

• Conveyor Synchronization: Conveyor synchronization and encoder connection.
• Transparent Label Detection: Special photocell module for transparent labels.
• End-of-Roll Alarm System: Alarm system indicating when the label roll has reached its end.
• Printing Unit Integration: Integration with thermal or hot-stamp printing systems.
• Adjustable Applicator: Adjustable carrier system for top, bottom and side applications.
