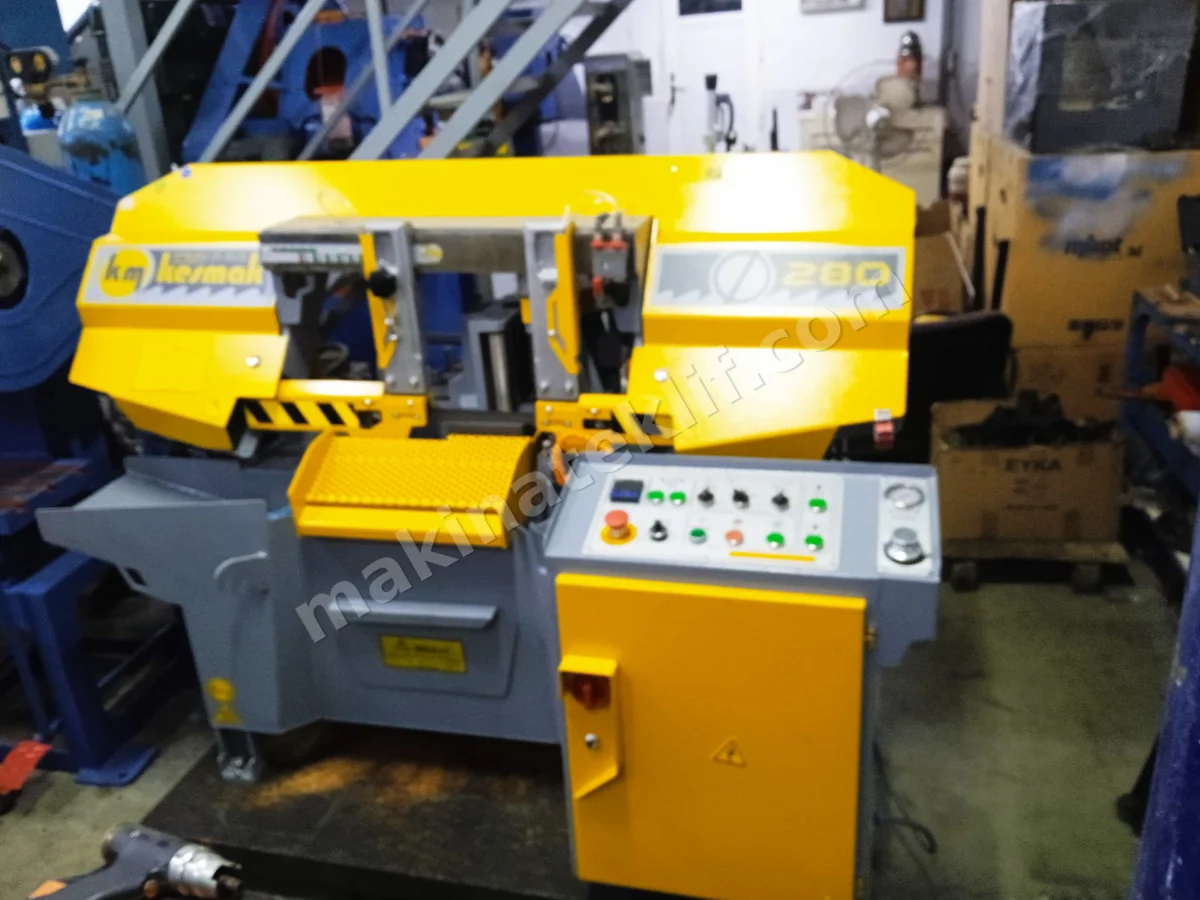

Kesmak KMO280 Fully Automatic Band Saw Machine

Brand-new product.

• Hydraulic vise system
• Hydromechanical band tension measurement system
• New brush for chip removal
• Stepless speed adjustment between 20 m/min and 110 m/min via inverter
• Automatic machine stop in case of band breakage
• Machine does not operate when the body covers are open
• Economical cutting that extends band life
• Automatic material feeding and cutting in the desired quantity

TECHNICAL SPECIFICATIONS – KMO 280

• 90° Cutting Capacity:
• Round: Ø 280 mm
• Square: 260 × 260 mm
• Rectangular: 210 × 340 mm
• Main Motor: 2.2 kW
• Coolant Motor: 0.12 kW
• Hydraulic Motor: 0.18 kW
• Driving Motor: 0.37 kW
• Band Dimensions: 0.9 × 27 × 3660 mm
• Coolant Tank Capacity: 27 liters
• Hydraulic Tank Capacity: 6.5 liters
• Feeding Height: 725 mm
• Feeding Length: 500 / 2000 mm
• Height × Width × Length: 1290 × 1270 × 1890 mm
• Weight: 650 kg
