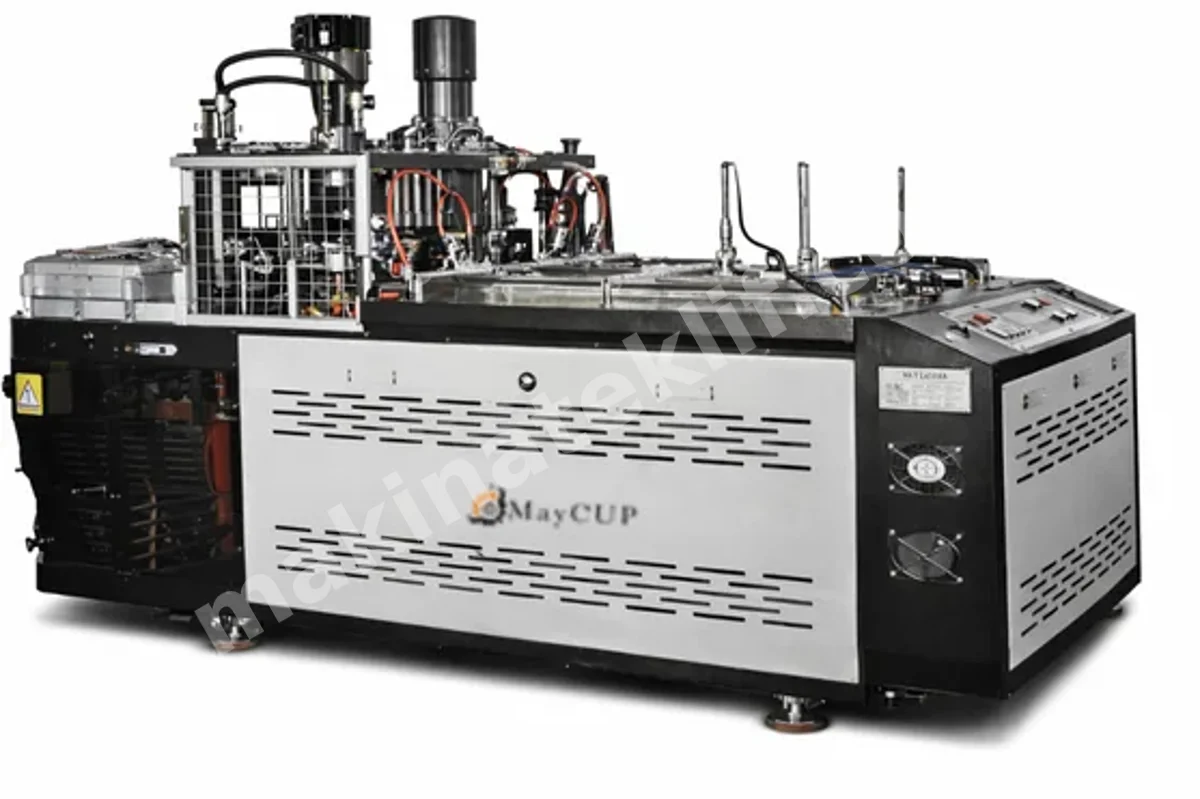

Dual-Mold Automatic Paper Plate Making Machine MYC130T

CSA Endüstri’s MayCUP MYC130T model is a dual-mold automatic paper plate machine developed for producing round paper plates and trays. It supports product widths of 12.7–27.9 cm, paper weights of 100–600 gsm, and a production capacity of 80–130 pieces/minute. Its dual-mold design enables two different sizes to be produced within the same production process.

Product Features

• MYC130T Dual-Mold Automatic Paper Plate Machine Technical Specifications
• Number of Plate Molds: 2 molds - Production of two different sizes simultaneously
• Processable Paper Weight: 100–600 gsm
• Processable Material: PE-coated paper and other PE-coated papers, cardboards
• Heated Sealing System: Yes
• Operating Voltage: 380 V 50 Hz
• Total Power: 14 kW
• Air Pressure Requirement: 0.8 MPa, 0.6 m³/min.
• Control Type: PLC control
• Counter: Included
• Collection System: Included
• Manufacturable Plate / Tray Width: 12.7–27.9 cm
• Manufacturable Product Shape: Round
• Production Speed: 80–130 pcs./min.
• Weight: 1,400 kg
• Dimensions: 2560 × 1130 × 2100 mm
