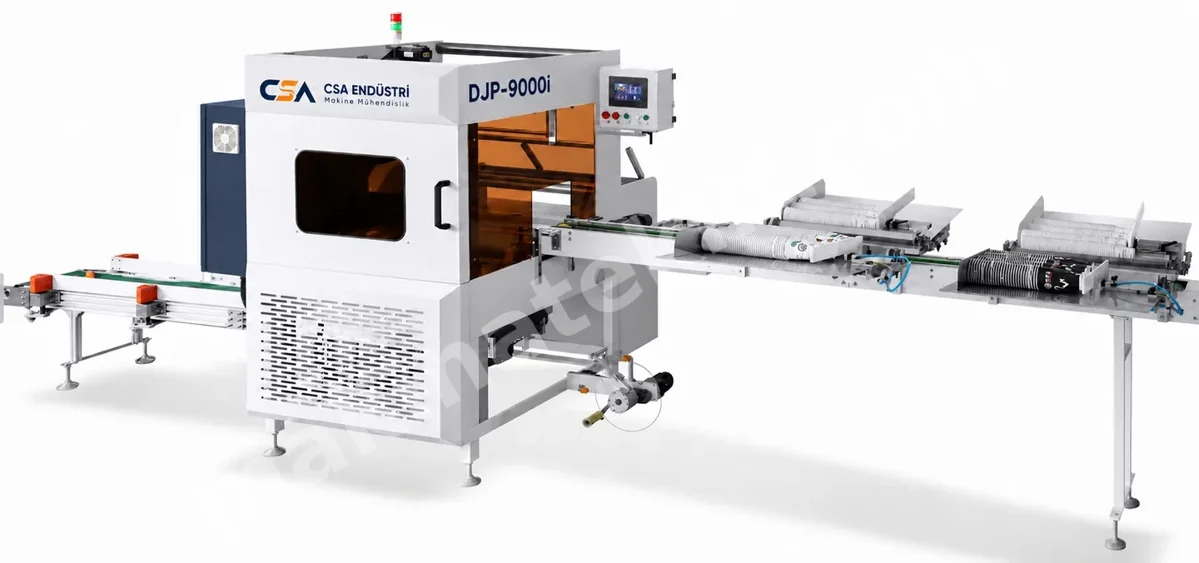

Multi-Machine Automatic Cup Packaging System DJP-9000i

CSA Endüstri’s DJP-9000i model is a multi-machine automatic packaging system that transfers cups and bowls from multiple production machines to the packaging line without manual handling. It offers a capacity of 10–20 packages/minute and automatically separates products of different sizes after packaging. PLC control, film perforation, and different product height options support controlled packaging in integrated production lines.

Product Features

• DJP-9000i Multi-Machine Automatic Cup Packaging System Technical Specifications
• Application Area: Paper and plastic cups, soup and ice cream bowls, baked goods, etc.
• Processable Material: Packaging bags / films
• Max. Roll Bag/Film Width: 26–45 cm
• Folded Bag/Film Width: 5–21 cm
• Max. Product Height: 4–10 cm, 10–14.5 cm (O) (2–16 OZ)
• Packaging Speed: 10–20 Packages/Min.
• Operating Voltage: 220 V 50 Hz
• Total Power: 2.8 kW
• Weight: 800 kg
• Machine Dimensions: 1610 (6000) × 1600 × 1730 mm
• Film Perforator to Prevent Air Trapping: Yes
• PLC Digital Display: Yes
• Turkish Menu Language Option: Yes
• Product Height for Packaging Without Adjustment: Max. 10 cm, 14.5 cm (O)
• Bag/Roll Cutting Type: Straight
• Multi-Machine Connection: Yes
• Hands-Free Transfer from Production to Packaging: Yes
• Packaging of Products in Different Sizes: Yes
• Separation of Products in Different Sizes at the Outlet: Yes
