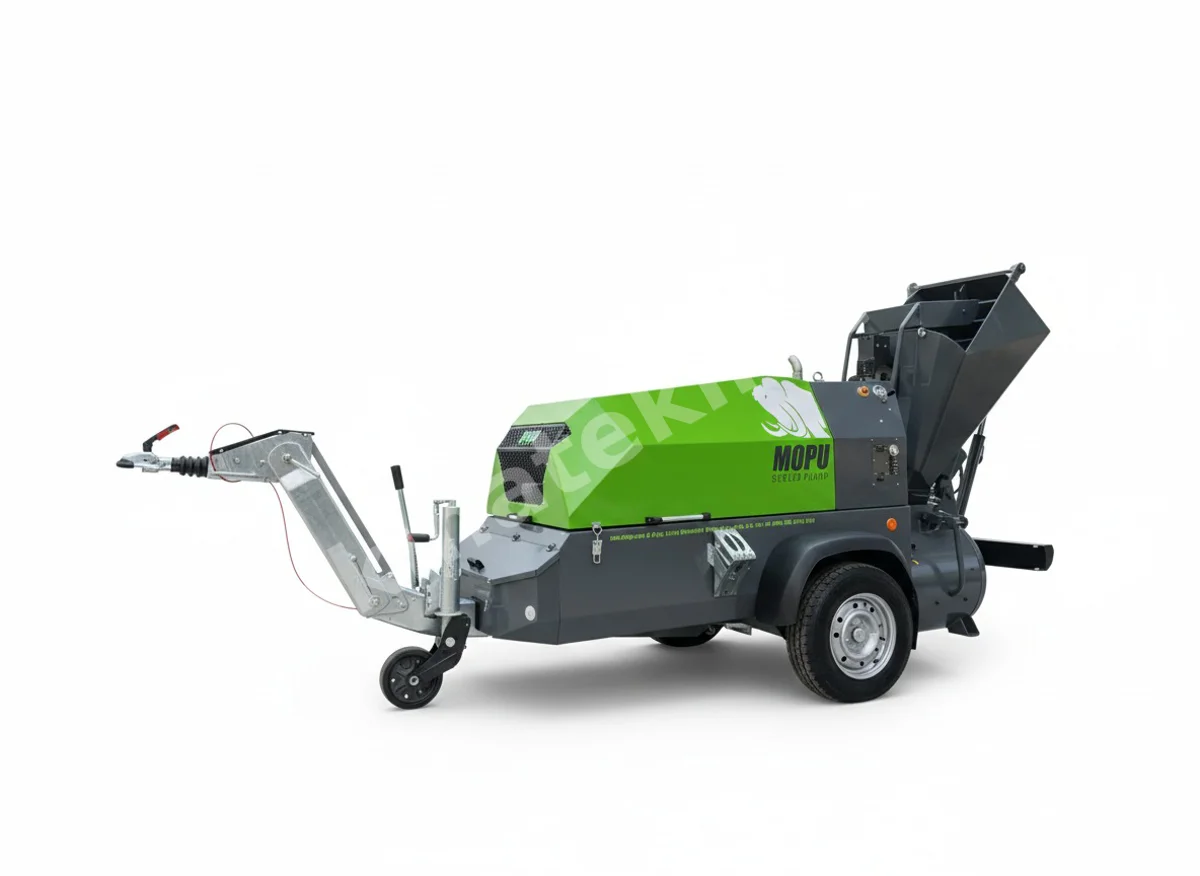

Mopu Sa455d Screed Machine

SA455D / DB Technical Data

• Compressor: 6.0 m³/min, 8 bar cut-off
• Engine: Diesel, 4-cylinder, 55 kW
• Maximum Working Pressure: 8 bar
• Pumping Height: 150 m vertical / 180 m horizontal
• Pumping Capacity: 4 m³/hour / 5 m³/hour
• Weight: 1960 kg / 2050 kg
• Filling Height: 815 mm / 400 mm
• Maximum Aggregate Size: 16 mm
• Mortar Hose Connection Type: DN50 / DN60 / DN65
• Length × Width × Height: 5195 × 1600 × 1590 mm / 5195 × 1600 × 2280 mm
• Maximum Trailer Road Speed: 80 km/h
• Control Voltage: 24 V
