TS275D Semi-Automatic Mitre Cutting Band Saw Machine

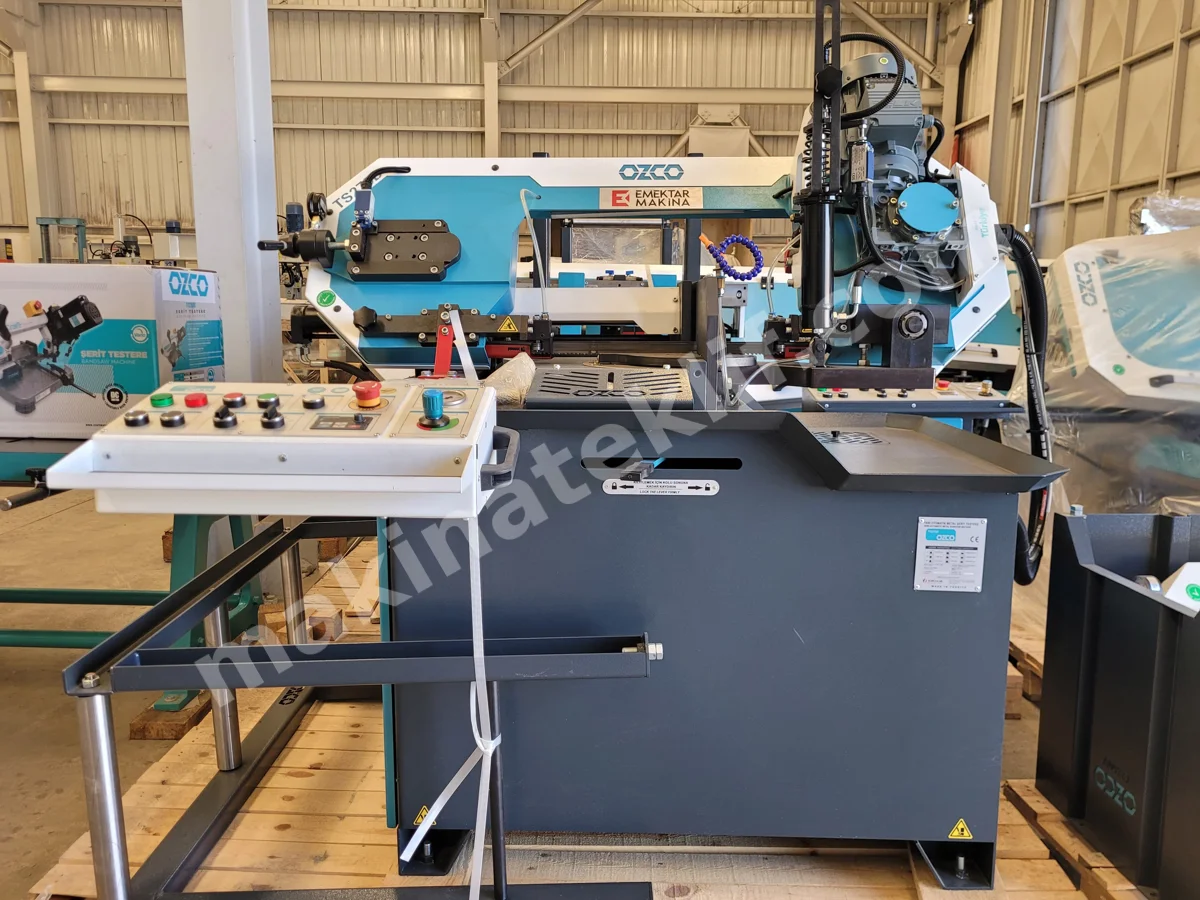

OZCO TS275D Semi-Automatic Dual Mitre Bandsaw

The OZCO TS275D is a professional semi-automatic bandsaw designed for high-precision metal cutting, featuring dual-direction mitre cutting capability and reliable performance for industrial applications.

Key Features:

• Variable speed control with inverter (Vario system) from 20 to 80 m/min
• Digital speed display
• Single cutting line vise design
• LED work light for the cutting area
• Hydraulic-mechanical blade tensioning system
• Blade pressure indicator
• Ergonomic control panel
• Specially designed cast-iron wheels
• High-quality hydraulic feed system
• Locally manufactured main motor and heavy-duty gearbox
• High-quality coolant pump
• Premium electrical system
• Chip cleaning brush
• CE compliant

Standard Delivery Includes:

• Adjustable material stop
• Factory-mounted bi-metal bandsaw blade
• 1-meter roller support stand with 3 rollers

Technical Specifications:

• Motor power: 1.5 kW, 380 V
• Cutting angle: -45° / +60°
• Angle adjustment: Central pivot
• Head feed: Hydraulic
• Blade size: 27 × 0.9 × 3160 mm
• Cutting capacity (0°): Round: 275 mm, Square: 275 × 275 mm, Rectangle: 350 × 150 mm
• Cutting capacity (45°): Round: 180 mm, Square: 160 × 160 mm, Rectangle: 260 × 120 mm
• Cutting capacity (60°): Round: 120 mm, Square: 120 × 120 mm, Rectangle: 140 × 120 mm
• Blade speed: 20-80 m/min
• Speed control: Infinitely variable inverter drive
• Material feed height: 960 mm
• Vise opening: 350 mm
• Vise height: 145 mm
• Hydraulic motor: 0.18 kW
• Coolant pump motor: 0.12 kW
• Machine dimensions (L × W × H): 1500 × 1750 × 1050 mm
• Weight: 460 kg
