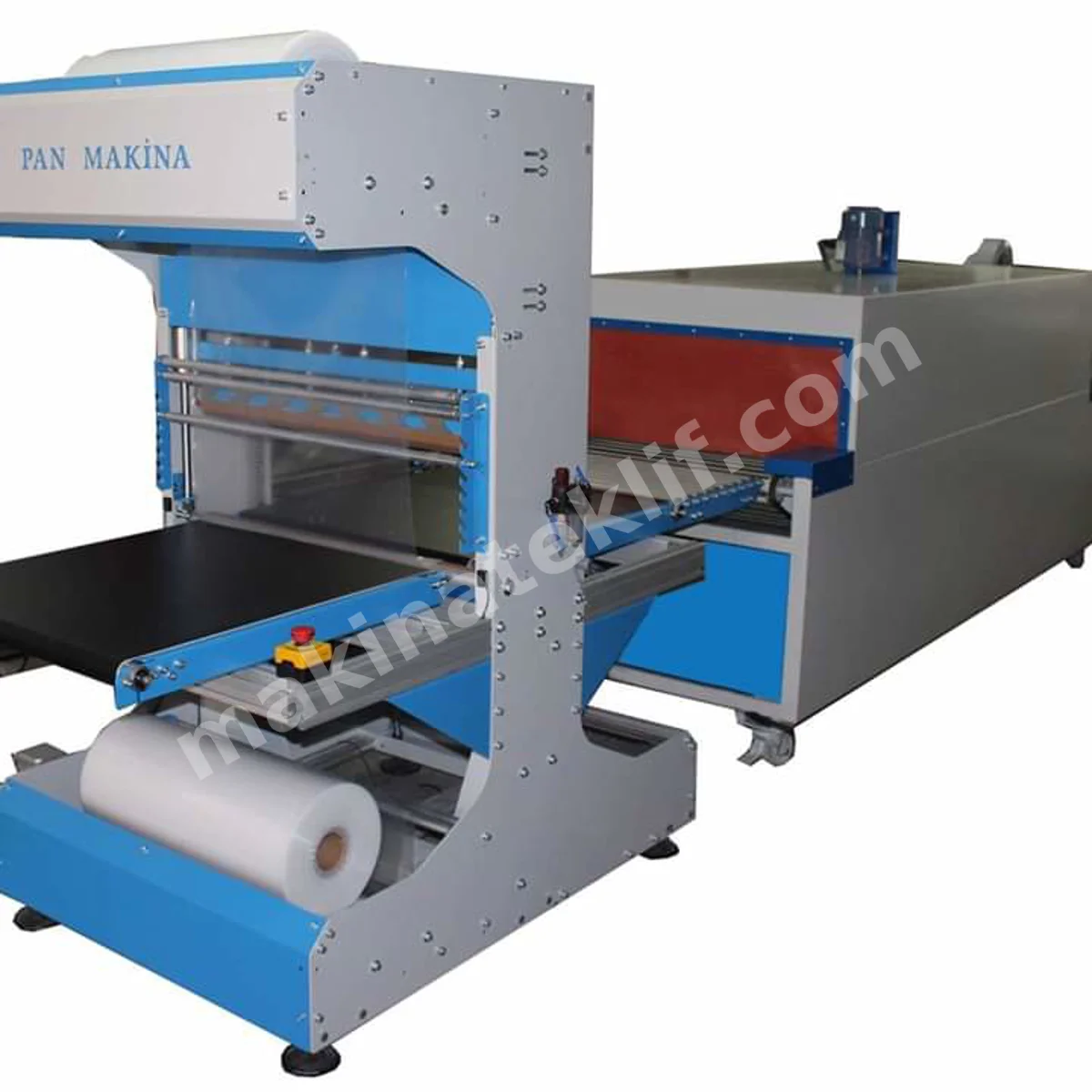

Automatic Front-Feed Shrink Wrapping Machine

SYSTEM INFORMATION

Technology: Front-fed automatic shrink machine

Capacity: Varies depending on the type of film used and product dimensions. Average capacity is 5 packages/minute and may vary depending on product dimensions.

Blade length: 1400 mm

Conveyor belt width: 1300 mm

MAX. TUNNEL INTERNAL DIMENSIONS

Width x Height x Length: 1400 x 400 x 2100 mm

MAXIMUM TUNNEL TEMPERATURE INFORMATION

Max. temperature: 300 °C

Min. temperature: Ambient temperature

Air distribution fan: Radial fan

Cooling fan: Centrifugal fan

TUNNEL DETAILS

Shaft conveyor inside the heat tunnel: 14 mm transmission shaft with 5/8 chain feed

Heating element: Stainless steel, 8.5 mm diameter

Insulation: 8 cm on the sides, at least 10 cm on the bottom and top

NYLON CUTTING SYSTEM FEATURES

Hot system: Teflon-coated, heating-element powered, stainless steel housing

ELECTRICAL – AIR CONNECTION

Electrical supply: 380 V - 3 Ph, 50-60 Hz

Maximum electrical consumption: 34 kW

Average electrical consumption: 20 kW

Min. air pressure: 6 atm

SHRINK FILM DIMENSIONS

Maximum length: 1370 mm

Single-layer polyethylene shrink film: 30-100 microns

Double-layer PE shrink film: —

Film specification: Anti-static

MACHINE COMPONENTS

Motor: WATT, VOLT, GAMAK

Nylon cutting system: Hot jaw with stainless steel housing

Pneumatic system: Pemaks

PLC system and display: DELTA

Motor speed control unit: DELTA

Electrical components: Schneider and Siemens

Sensors: Omron
