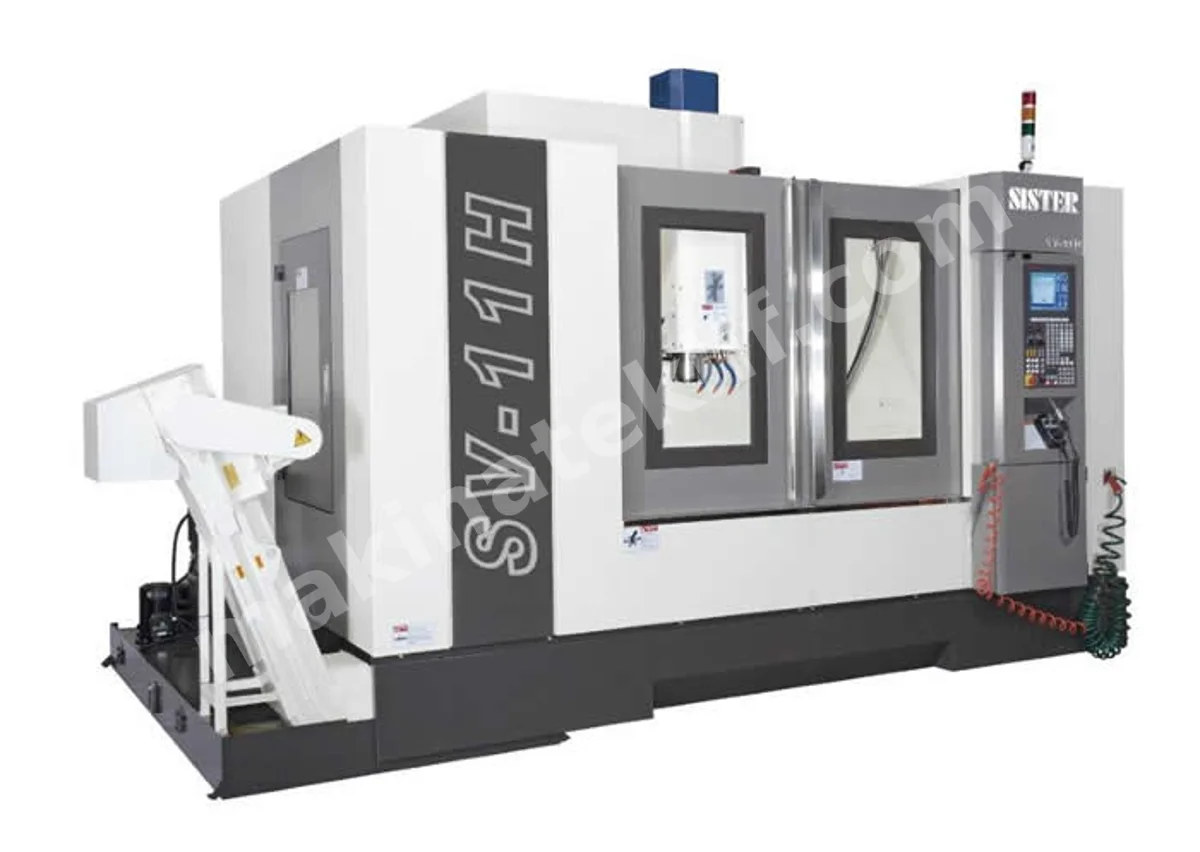

Sister Sv-11H Cnc Vertical Machining Center

Motion

• X Axis: 1100 mm
• Y Axis: 600 mm
• Z Axis: 600 mm
• Spindle – Table Distance: 120-720 mm
• Spindle – Column Distance: 680 mm

Table

• Table Dimensions: 1250 x 600 mm
• Max. Table Load: 1000 kg
• T-Slots: 18 mm x 5

Spindle

• Spindle Taper: BT40
• Spindle Speed: 10,000 rpm
• Spindle Motor: 11 kW

Feed

• Rapid Feed Rate: 30/30/24 m/min
• Cutting Feed Rate: 10 m/min
• Axis Motors: Mitsubishi: 3.0/3.0/3.5 kW; Fanuc (α): 3.0/3.0/4.0 kW
• Z-Axis Brake System: Slide Type
• Slide Dimensions X/Y/Z: 35/45/45 mm
• Ball Screw: Roller Linear, 40-Pitch 10 mm (C3)

ATC

• Number of Tools: 24
• Max. Tool Diameter: 77 (127) mm
• Max. Tool Length: 300 mm
• Max. Tool Weight: 7 kg
• Tool Change Speed: Tool-to-Tool: 2.7 sec / Chip-to-Chip: 6.7 sec

Dimensions

• Required Power: 25 kVA
• Machine Footprint: 3650 x 2500 mm
• Machine Weight: 7800 kg
