Tegras Rf 400° | Ventilation And Grease Duct Access Doors

Tegras RF 400° HVAC and Grease Duct Access Doors

Tegras RF 400° duct access doors are designed to provide easy access for cleaning, maintenance and inspection operations in ventilation systems, particularly grease duct applications.

Thanks to their high-temperature resistance, they provide safe operation in industrial kitchen exhaust systems and heavily used ventilation lines. Their design is compatible with both straight and curved duct systems, making them suitable for various installation applications.

The double-body design and special sealing gasket system help prevent air and grease leakage. Complying with the UNE-EN 12097 standard, the access doors provide a reliable solution for maintenance and cleaning operations.

Applications

Industrial kitchen ventilation systems

Grease ducts and exhaust systems

HVAC installations

Restaurant and hotel kitchens

Production facilities

Industrial ventilation applications

Technical Specifications

Product Type: Duct Access Door

Model: Tegras RF 400°

Application: Ventilation and grease duct systems

Temperature Resistance: 400 °C

Duct Compatibility: Straight and curved ducts

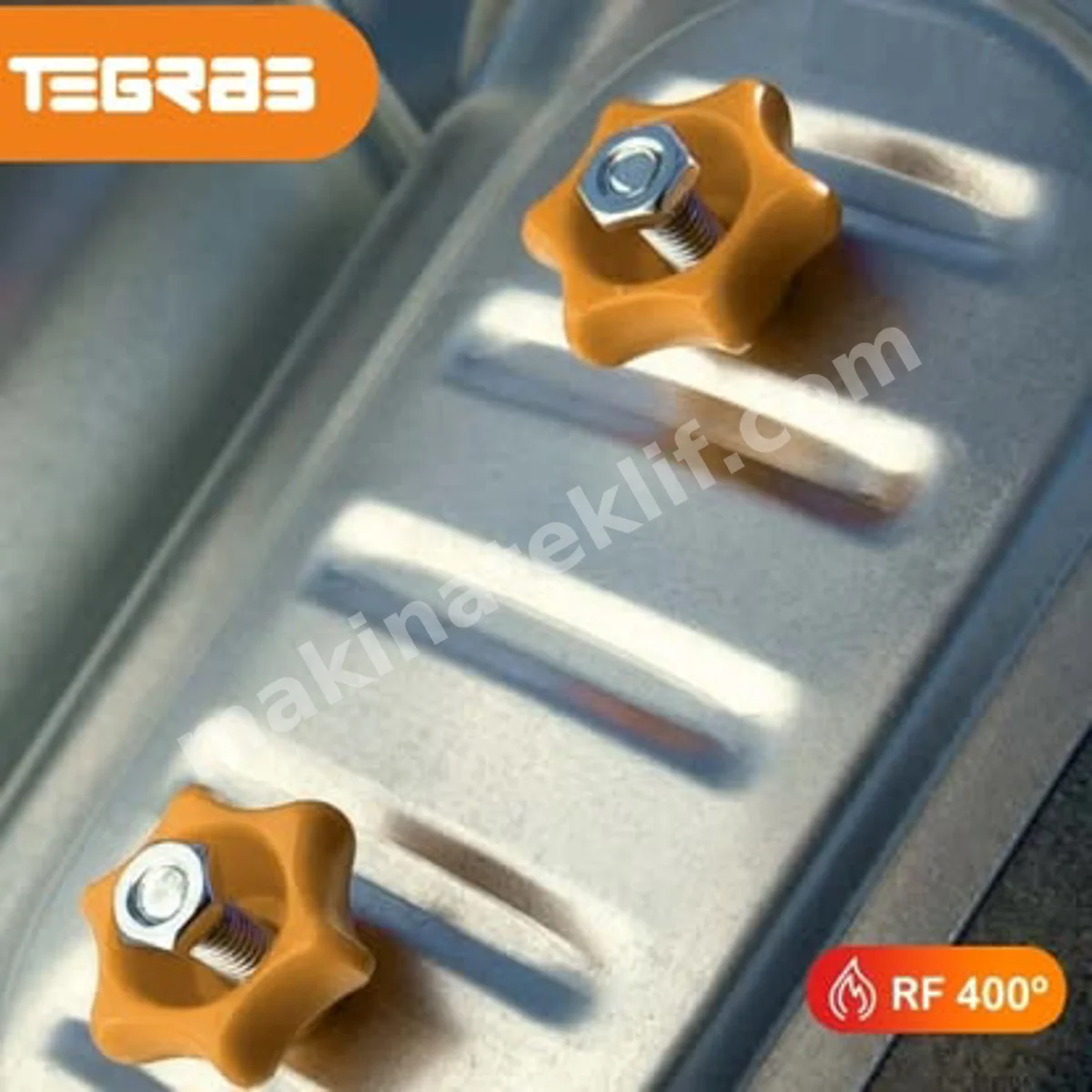

Opening/Closing System: Tool-free special locking system

Sealing: Double body and special gasket system

Standard: UNE-EN 12097

Purpose: Access for cleaning, maintenance and inspection

Available Sizes

Straight Duct Type

250 × 150 mm - Reference Number: AC7122515

300 × 200 mm - Reference Number: AC7123020

400 × 300 mm - Reference Number: AC7124030

Curved (Diameter) Duct Type

250 × 150 mm - Diameter: Ø200-Ø250 mm - Reference Number: AC7132525

300 × 200 mm - Diameter: Ø300-Ø350 mm - Reference Number: AC7133035

300 × 200 mm - Diameter: Ø400-Ø450 mm - Reference Number: AC7133045

400 × 300 mm - Diameter: Ø500-Ø700 mm - Reference Number: AC7134050

General Features

With a temperature resistance of 400 °C, the access doors provide safe operation in high-temperature duct systems.

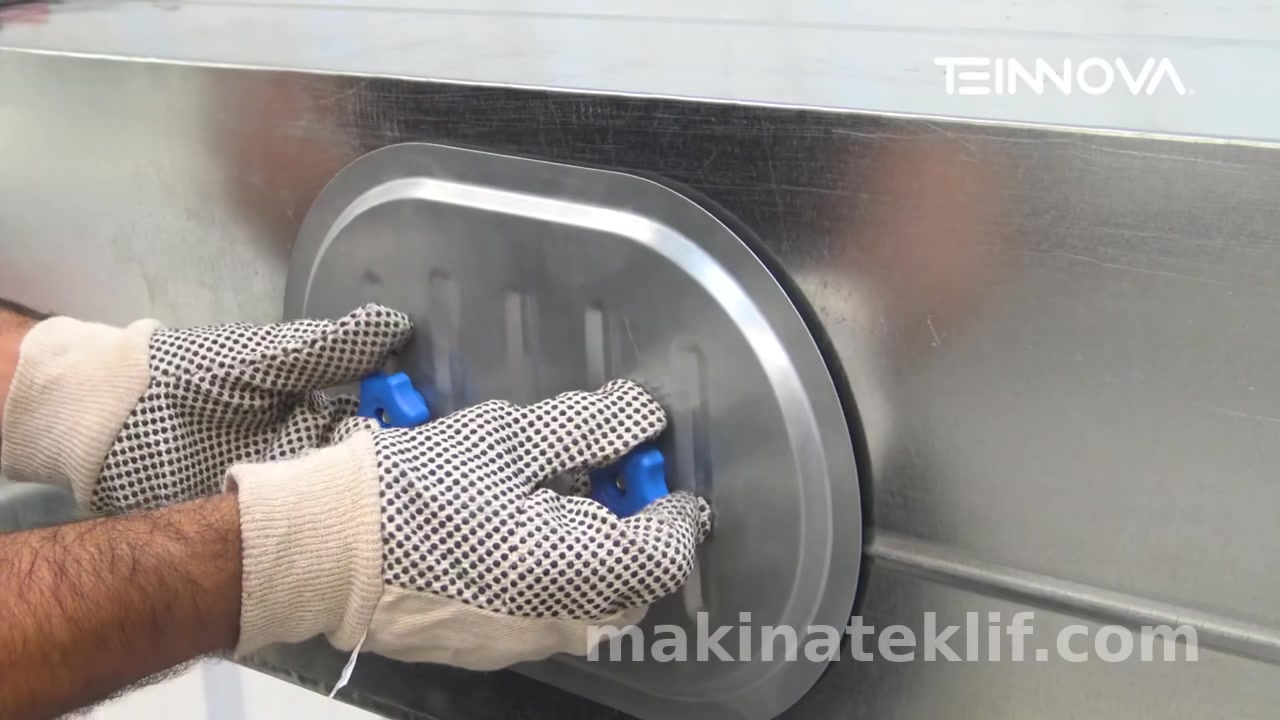

The special locking system allows the door to be easily opened and closed without using any tools.

The double-body design increases durability and provides a long service life.

The gasket system helps maintain air and grease tightness.

It enables cleaning and maintenance operations to be performed more quickly and safely.

Different size options are available for straight and curved duct systems.

Its design complies with European standards and is suitable for professional ventilation applications.

By providing regular maintenance access inside the duct, it contributes to maintaining system performance.

Shipping and Delivery Information

Product shipment is planned according to order quantity and stock availability.

Suitable for wholesale sales.

Please contact us for information about minimum order quantities and lead times.

Transportation arrangements are made between the buyer and seller.
