Multibot Ventilation Duct Cleaning Robot

Multibot | Advanced HVAC Duct Cleaning, Disinfection and Insulation Robot

One Robot, Multiple Applications

Multibot is a modular robot that combines multiple functions for the cleaning, disinfection and insulation of HVAC systems in a single body. By performing multiple applications with one system, it provides advantages in terms of time, cost and equipment investment.

The basic version of Multibot is designed for duct cleaning. Disinfection, different brushing modules and the insulation module are available separately as optional equipment.

Smart Cleaning with Integrated Technologies

Full HD Cameras: Provide detailed monitoring and recording of the inside of the duct. They support reporting through before-and-after cleaning inspections.

Automatic Elevation System: Allows the robot to automatically adapt to different duct heights, increasing operational efficiency.

HMI Touchscreen Control Panel: Its user-friendly interface makes it easy to manage all operations. Precise control and process data monitoring are also available.

HD Video Recording System: Facilitates the documentation of operations and the preparation of reports for customers.

Modular Application Options

HVAC Duct Cleaning: Main module.

Disinfection (Optional Module): Designed to provide hygiene inside HVAC ducts.

Insulation and Sealing Application (Optional Module): Designed to prevent energy losses and improve system performance.

With its adaptable and expandable modular structure, Multibot can be customized according to the requirements of different industries.

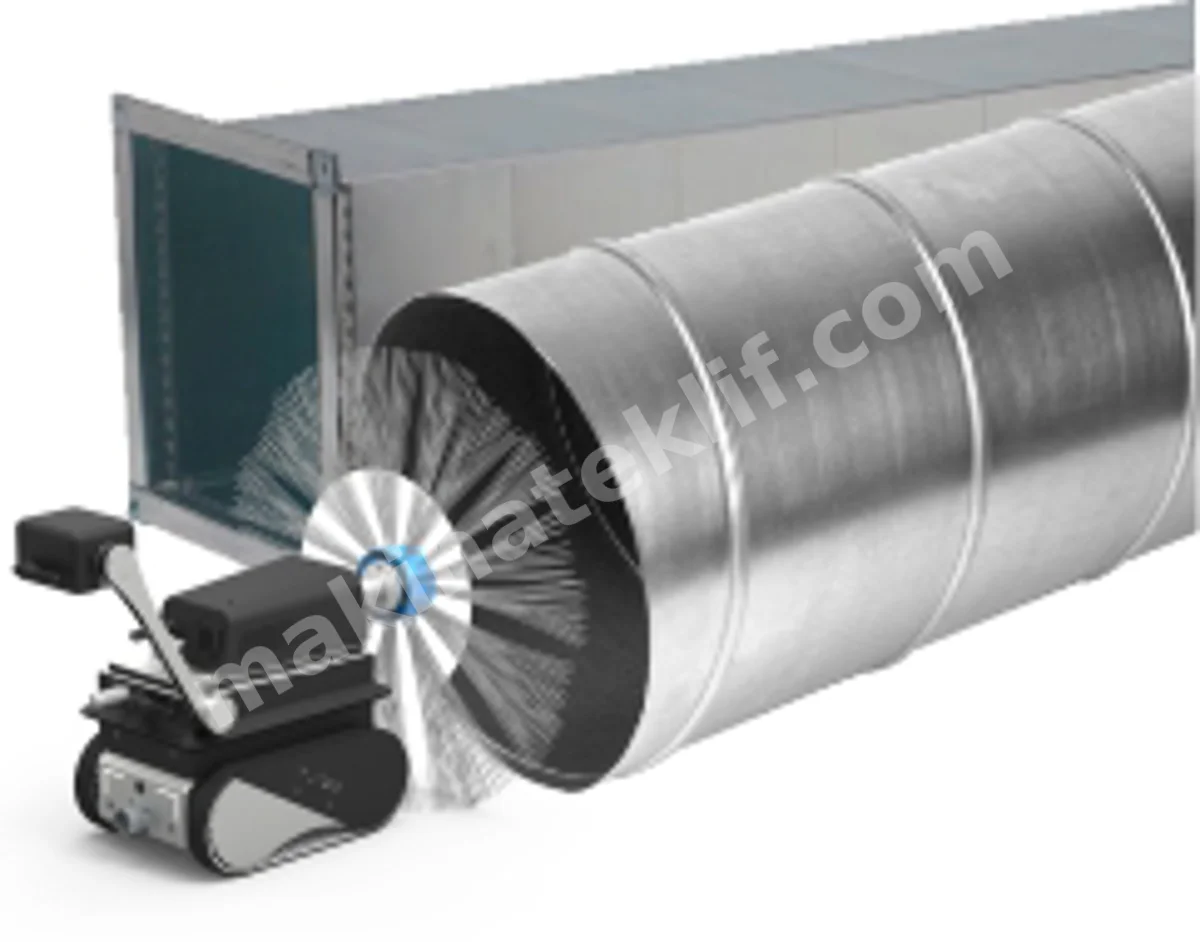

B360° Module: 360-degree brushing with a circumferential brushing module.

B100 Module: Circular brushing module.

A100 Module: Air whipping module.

D360° Module: Disinfection module.

S360° Module: Insulation module.

Micro Robot Module: Suitable for ducts measuring between 250 mm and 500 mm.

MAX Robot: Suitable for ducts measuring between 350 mm and 1000 mm and equipped with a specialized lift elevation system.

Applications

Industrial facilities

Hospitals and hotels

Shopping malls

Office buildings

Production and logistics centers

And many more
