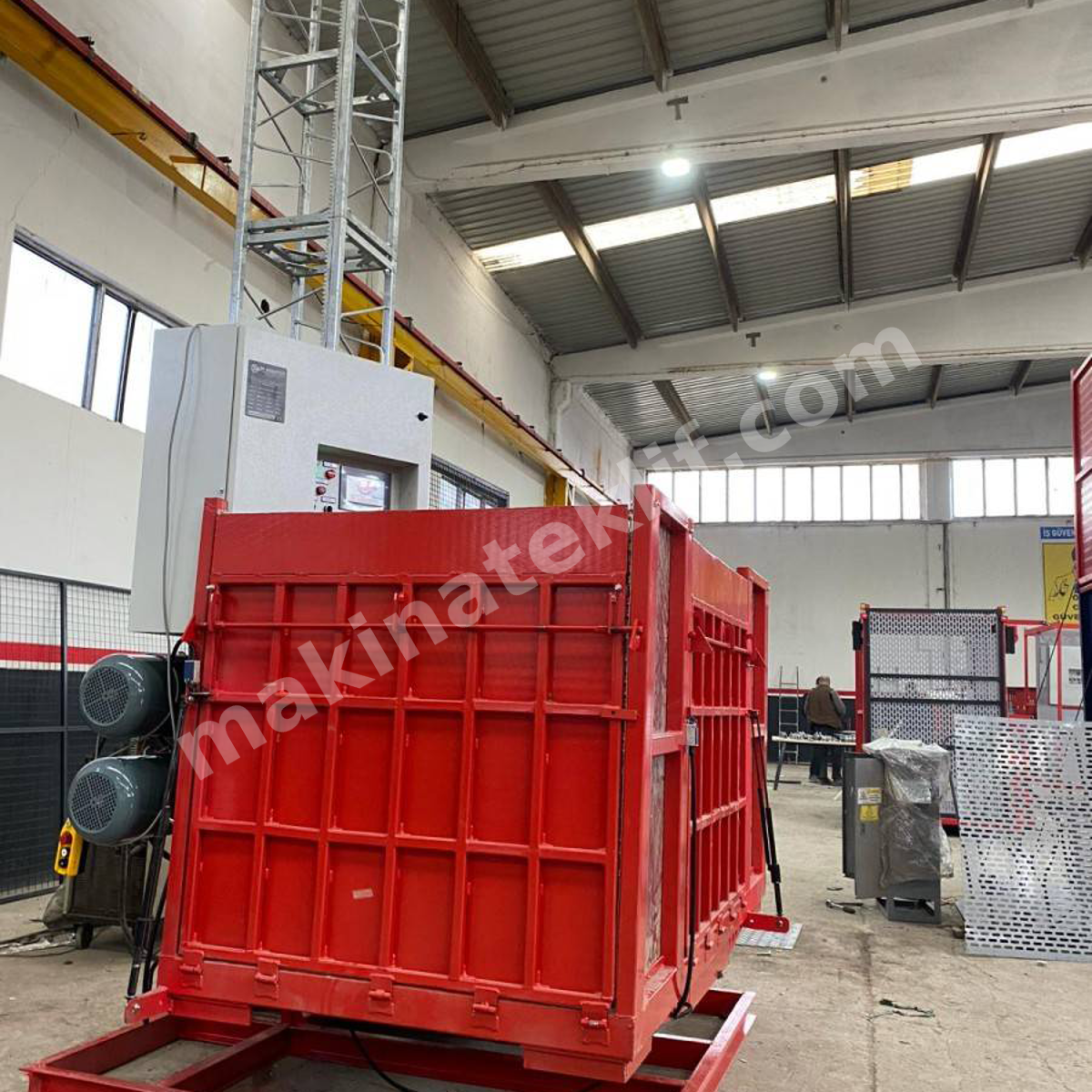

1500DH Personnel and Goods Elevator (Open Cabin)

1500DH Goods and Personnel Hoist (Open Cabin)

Technical Specifications

• Load Capacity: 1500 kg
• Maximum Height: 200 m
• Mast Dimensions: 500 x 500 x 1490 mm
• Weight of Each Vertical Mast: 55 kg
• Connection Spacing: 6 m
• Hoist Speed: 24 m/min
• Cabin Dimensions: 1250 x 2000 mm
• Ramp Width: 1000 mm
• Supply Voltage: 380 V / 50 Hz
• Control Voltage: 24 V
• Motor Power: 2 x 7.5 kW
• Current: 60 A

Features

• PLC system displaying the hoist's open/closed contacts, internal load, and faults
• Ability to record all previous faults
• Automatic maintenance warning every 400 hours
• Load Cell (electronic weighing) system
• Lenze speed control device + inverter
• YILMAZ brand helical bevel gearboxes
• GAMAK brand motors
• Temporiti + Dereli brand 24 V brakes
• Cable trolley

Safety Features

• Speed-sensitive safety parachute brake system
• Touchscreen with control unit and on-screen fault monitoring
• Rackless stopping mast
• Connection with anchoring arms every 6 meters
• Upper and lower limit switches restricting cabin movement
• Emergency stop button
• Low- and high-voltage protection system
• Audible warning system before every movement
• Continuous audible warning during descent
• Manual lowering lever
• Emergency siren system
• Warning signs
