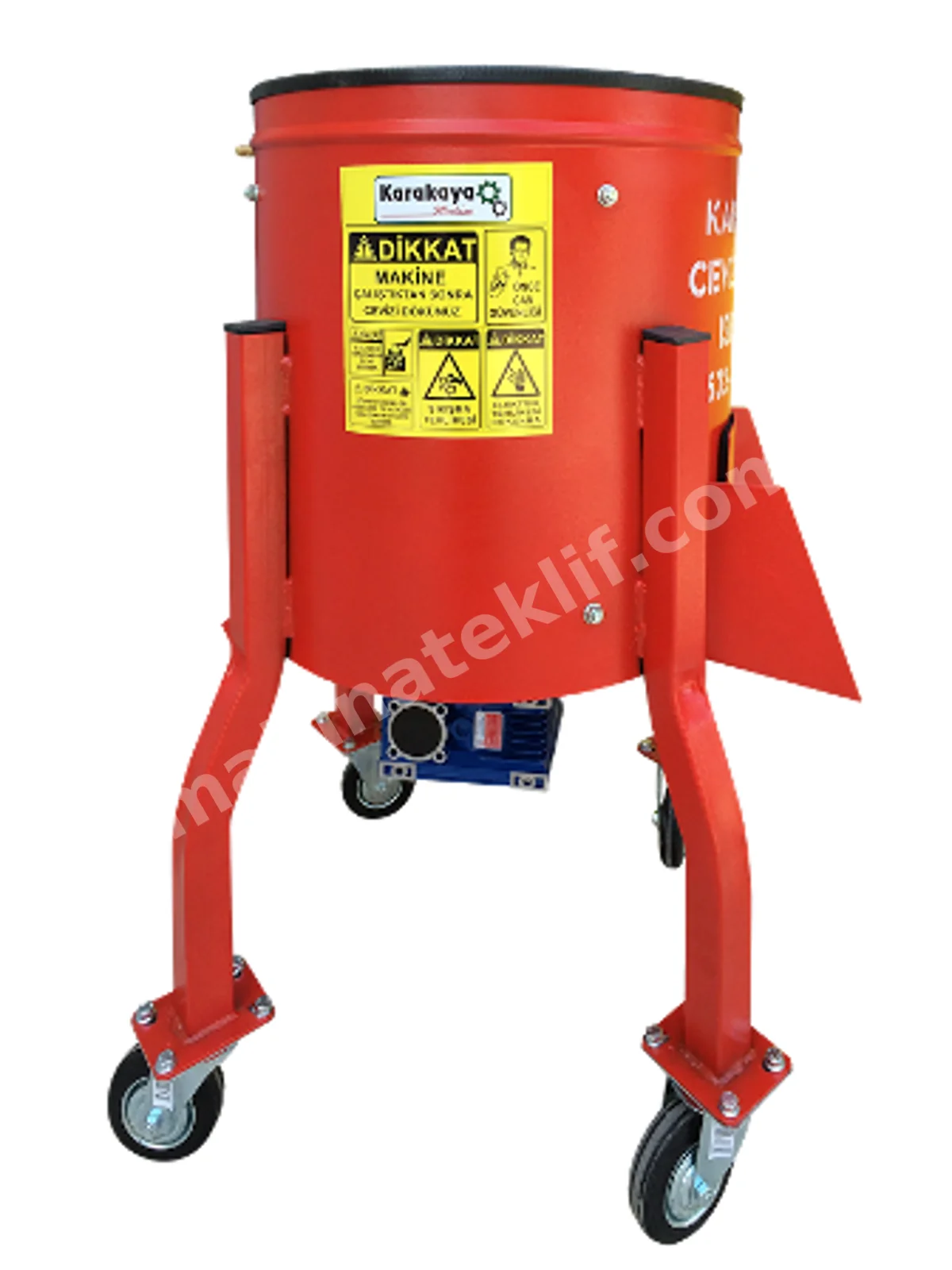

Karakaya Makina Variable-Speed Walnut Shell Peeling Machine

Controlled and efficient operation with a variable-speed walnut husking machine.

The key factor in manufacturing a variable-speed machine is the thickness and hardness of the walnut shell. For thin-shelled varieties such as Şebin and Bilecik, as well as certain local walnut varieties with fragile shells, a variable-speed model has been developed to allow operation at lower speeds and help reduce the risk of breakage.

With variable speed control, the risk of walnut breakage and product loss can be reduced. Low-speed operation provides better results for easily broken walnuts, while higher speeds can be used to increase processing speed for hard-shelled walnuts. The operator can adjust the speed according to the application requirements. The speed control panel is equipped with an electronic drive that precisely controls the motor speed by changing the 50 Hz mains frequency, allowing the motor speed to be increased or decreased.

The machine requires only an electrical outlet and a water connection for operation.

It is recommended within the scope of Agricultural Provincial Directorates.

For long-term use, the abrasive system is manufactured from 430K stainless steel, unlike conventional systems. The system incorporates tens of thousands of abrasive teeth. Sandpaper, bonded abrasive powder, sieve wire, or similar materials are not used.

TECHNICAL SPECIFICATIONS

Body: Painted with durable electrostatic oven-baked powder coating resistant to external conditions.

Motor: 1.5 HP, 1.1 kW, 1500 rpm (50 kg capacity).

Capacity: 45–50 kg of walnuts in 7–8 minutes.

Motor: 2 HP, 1.5 kW, 1500 rpm (120 kg capacity).

Capacity: 110–120 kg of walnuts in 10–12 minutes.

Drive Mechanism: Equipped with a geared drive mechanism designed for reliable operation, low risk of failure, and minimal maintenance.

Manufacturing: All components are manufactured using CNC machines. Fully domestic materials are used, including the motor and gearbox components. No Chinese-made materials are used.

Chamber: The center of the chamber is designed without a central shaft to allow walnuts to circulate freely.

Operation: Designed for single-person operation, providing minimum labor requirements and maximum efficiency.

Discharge: Once the husking process is complete, the cleaned walnuts can be easily discharged automatically by opening the cover.

Performance: Even with fragile, thin-shelled walnut varieties, the machine provides superior performance and thorough husk removal without breaking the walnuts.

Application: Ideal for small- and medium-scale farmers and businesses.

Warranty: All mechanical components are covered by a 2-year warranty.
