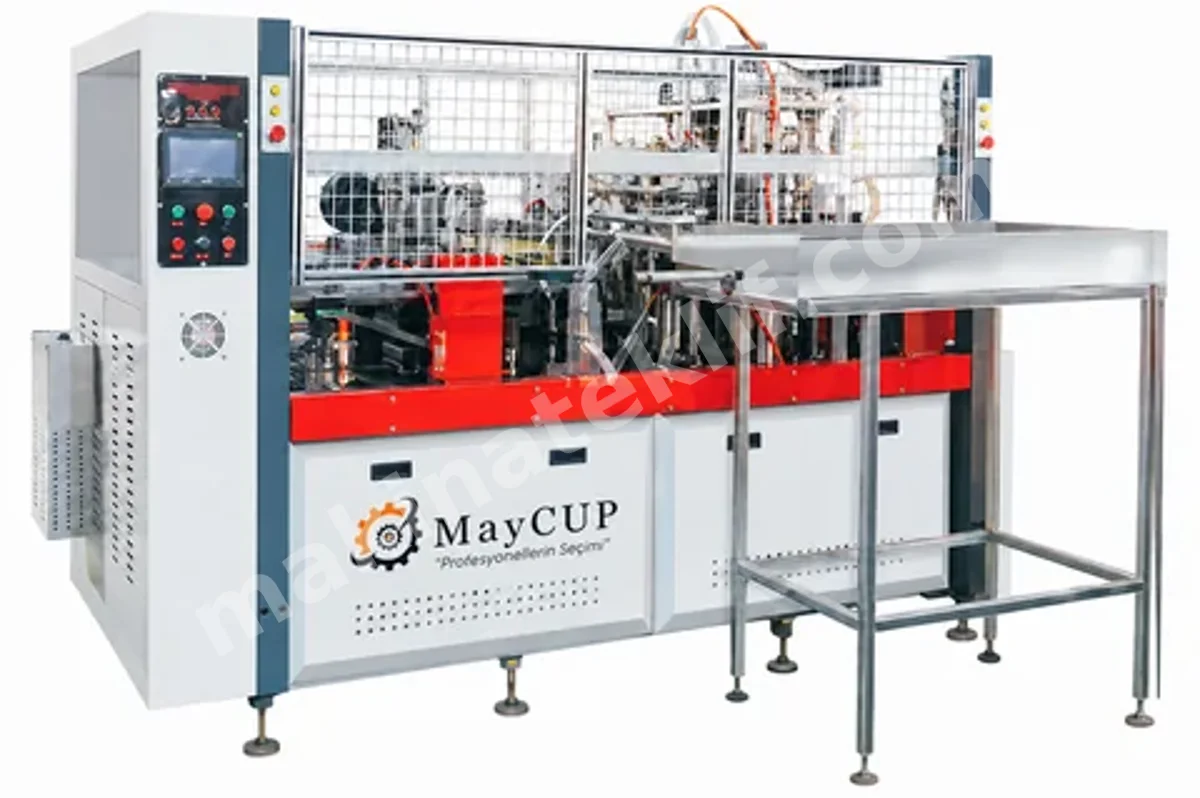

Fully Automatic Salad Bowl and Döner Box Machine MYC80S

CSA Endüstri’s MayCUP MYC80S model is a fully automatic paper bowl machine developed for producing 20–40 OZ salad bowls and Döner Boxes. It offers a stable production capacity of 40–60 pieces/minute, supported by PLC-controlled full automation, servo-driven bottom paper feeding, and an automatic hydraulic bottom lifting system. It is suitable for the controlled and repeatable production of large-volume food packaging.

Product Features

• MYC80S Fully Automatic Salad Bowl and Döner Box Machine Technical Specifications
• Raw Material: Single / Double PE
• Processable Paper Weight: 140–350 g/m² PE
• Operating Voltage: 380 V 50 Hz
• Motor Type: Inverter
• Air Pressure Requirement: 0.6 MPa, 0.6 m³/min.
• Chassis Type: Reinforced chassis
• Transmission System Type: Extra-hardened gear and shaft system
• Side Paper Suction System: 4-suction-cup system
• Lubrication System: Automatic lubrication and filtration system
• Silicone Lubrication System: Automatic
• Conveyor-Type Bottom Paper Waste Cutter: Included
• Bottom Paper Feeding: Servo electronic motor
• Safety Frame: Yes
• Mold Size Range: 20–40 OZ
• Side Paper Sealing: Ultrasonic
• Side Paper Preheating System: Yes (1 unit, excellent sealing)
• Speed: 40–60 pcs./min. / 2,400–3,600 pcs./hour
• Total Power: 16.8 kW
• Weight: 3,200 kg
• Dimensions: 2850 × 1400 × 2050 mm
• Number of Bowl Molds: 8 bowl molds (Aluminum)
• Number of Bottom Adhesive Chutes: 1 snail-type, 2 powerful ceramic heaters, 4 units in total (Excellent bonding and sealing)
• Control Type: PLC control, full automation
• Collection System: Robotic arm / Blowing system (O)
• Bottom Paper Lifting System: Yes
