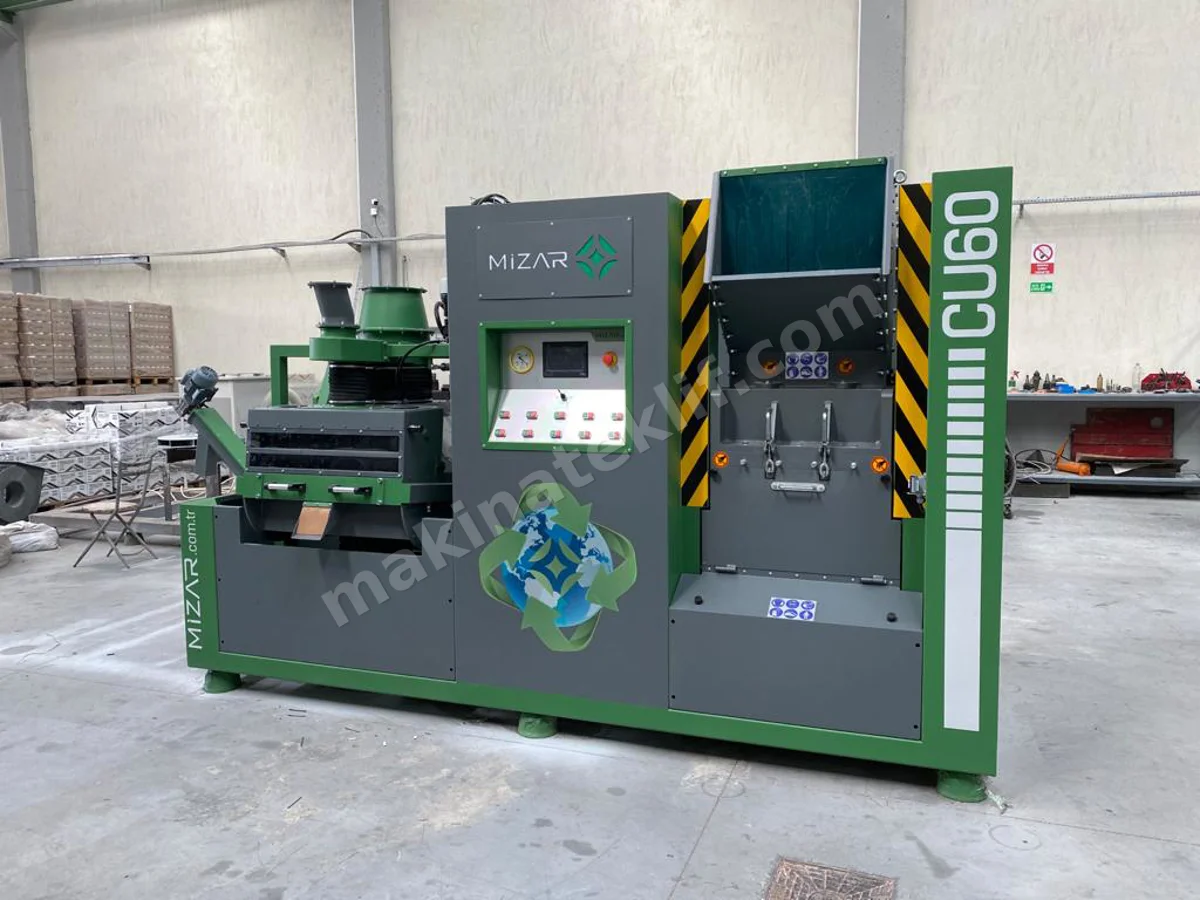

CU60 Cable Stripping and Separation Machine

The CU60 Cable Granulator Machine is designed for medium and large-scale recycling operations, efficiently separating the inner and outer components of electrical cables for reuse. Its integrated design combines the granulation, separation and fan units into a single compact system, delivering an impressive 99.6% separation purity for maximum recycling efficiency.

The processing operation can be carried out manually using a conveyor belt or fully automated by integrating the machine with the SSH Series Pre-Shredder, reducing labor requirements while increasing productivity and operational efficiency.

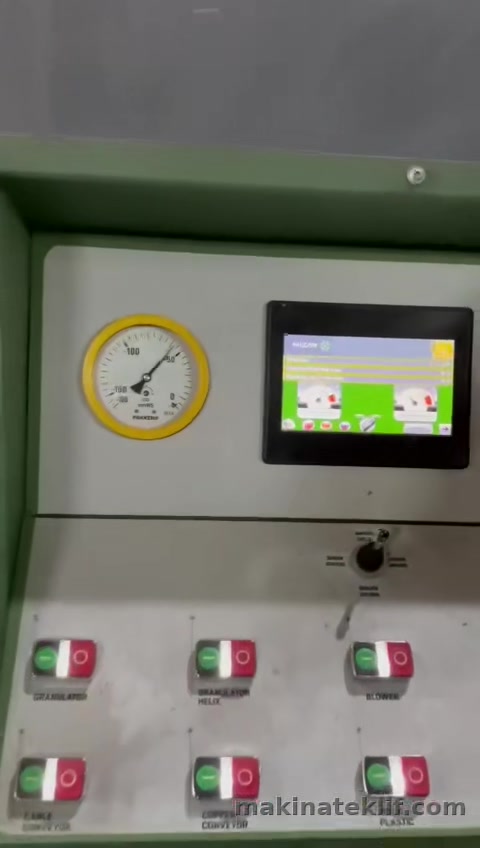

Equipped with a PLC touchscreen control panel, the CU60 provides simple machine operation and real-time process monitoring. Manufactured in compliance with CE standards, the machine features durable industrial-grade components that ensure reliable, long-lasting and uninterrupted performance.

Key Features

• Processing capacity of up to 600 kg per hour.

• High-efficiency separation system with 99.6% purity.

• Compact integrated design combining granulation, separation and fan units.

• Optional fully automated operation with the SSH Series Pre-Shredder.

• Easy operation and real-time monitoring through the PLC touchscreen interface.

• CE-compliant design with durable and reliable industrial construction.

Technical Specifications

• Approximate Capacity: Up to 600 kg/h

• Total Power: 60 kW / 81.5 HP

• Granulator Motor: 45 kW / 61.1 HP

• Blade Configuration: 30 + 2

• Dimensions (L × W × H): 4,970 × 2,000 × 2,860 mm

• Total Weight: 3,800 kg (8,300 lb)
