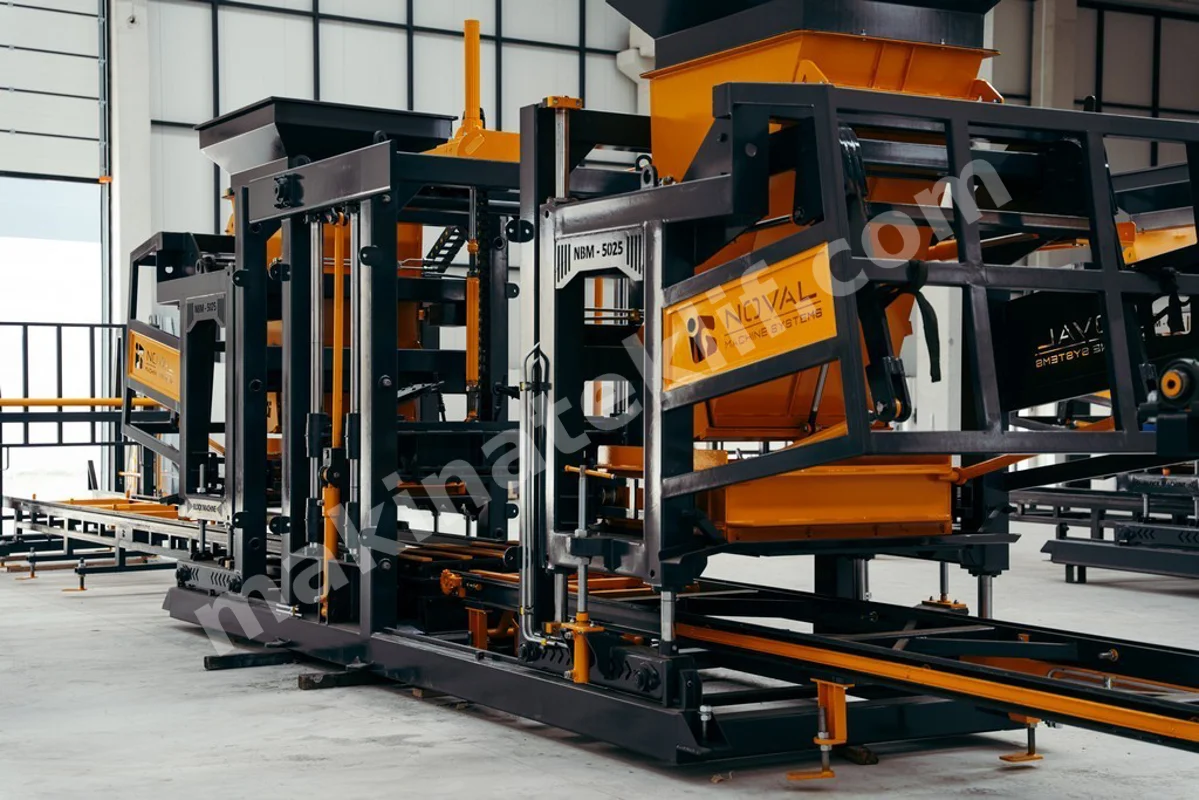

NBM 5025 Concrete Paving Stone and Block Making Machine

The NBM 5025 Concrete Paving Stone and Block Machine, developed by NOVAL A.Ş., is a fully automatic production system designed for businesses seeking regular and high-capacity concrete product manufacturing. Its powerful hydraulic structure, programmable control options, and low personnel requirement enable the controlled management of concrete block and interlocking paving stone production processes.

The machine uses a hydraulic system operating at a pressure range of 120-140 bar to compact the concrete mixture inside the mold. It can produce 10 standard blocks measuring 20 × 40 × 20 cm or 25 interlocking paving stones in a single pressing cycle. This production capacity provides a balanced solution for facilities working with different product groups and seeking to manage their operations through an automated system.

During production, the concrete compacted inside the mold is pressed onto production pallets. The manufactured blocks and paving stones are transported to the drying area on the same pallets and remain on the pallets until they achieve the required strength. Therefore, a sufficient number of production pallets should be provided according to daily production capacity, product variety, and drying time.

Fully Automatic and Controlled Production

The NBM 5025 features a fully automatic operating system that enables production line operations to be carried out systematically with a limited number of personnel. The machine can be managed through program selection, helping different production recipes and product models to be implemented in a controlled manner.

The automatic operating mode performs repetitive production steps according to predetermined settings. The manual operating option allows the operator to directly intervene in the system during maintenance, mold adjustment, trial production, and technical inspection processes.

The machine features stop, pause, and resume functions. These features support safe system management during material feeding, shift changes, or inspections to be performed on the production line.

The option for technical inspection and fault troubleshooting via the internet contributes to the rapid evaluation of service requirements. The fast service and spare parts support provided by NOVAL A.Ş. aims to reduce possible interruptions in production.

NBM 5025 Technical Specifications

• Hydraulic Operating Pressure: 120-140 bar
• Standard Block Capacity: 10 units per pressing cycle
• Standard Block Dimensions: 20 × 40 × 20 cm
• Interlocking Paving Stone Capacity: 25 units per pressing cycle
• Production System: Fully automatic
• Production Method: Pressing onto production pallets
• Control Options: Automatic and manual
• Handling Option: Forklift handling
• Energy Structure: A+ energy-efficient system
• Electric Motors: EFF3 class
• Warranty Period: 4 years in total, consisting of 2+2 years
• Technical Support: Fast service, spare parts, and remote connection
• User Training: Authorization certificate upon completion of training

Features Supporting Production Continuity

The NBM 5025 has been developed for intensive production conditions with energy-efficient components and powerful electric motors. Controlled hydraulic pressing helps compact the concrete mixture evenly inside the mold and maintain product dimensions throughout the production process.

Easy program selection allows businesses to adjust machine settings according to the product to be manufactured. The combination of automatic and manual control options provides ease of use not only in serial production but also during maintenance and testing operations.

The free spare parts supplied with the machine contribute to meeting basic maintenance requirements more quickly. The four-year total warranty, fast service, and spare parts support are among the key services supporting the continuity of the business's production operations.

As part of the operator training provided by NOVAL A.Ş., information is provided on machine operation, program use, daily checks, and safe operating procedures. Personnel who complete the training process are provided with an authorization certificate.
