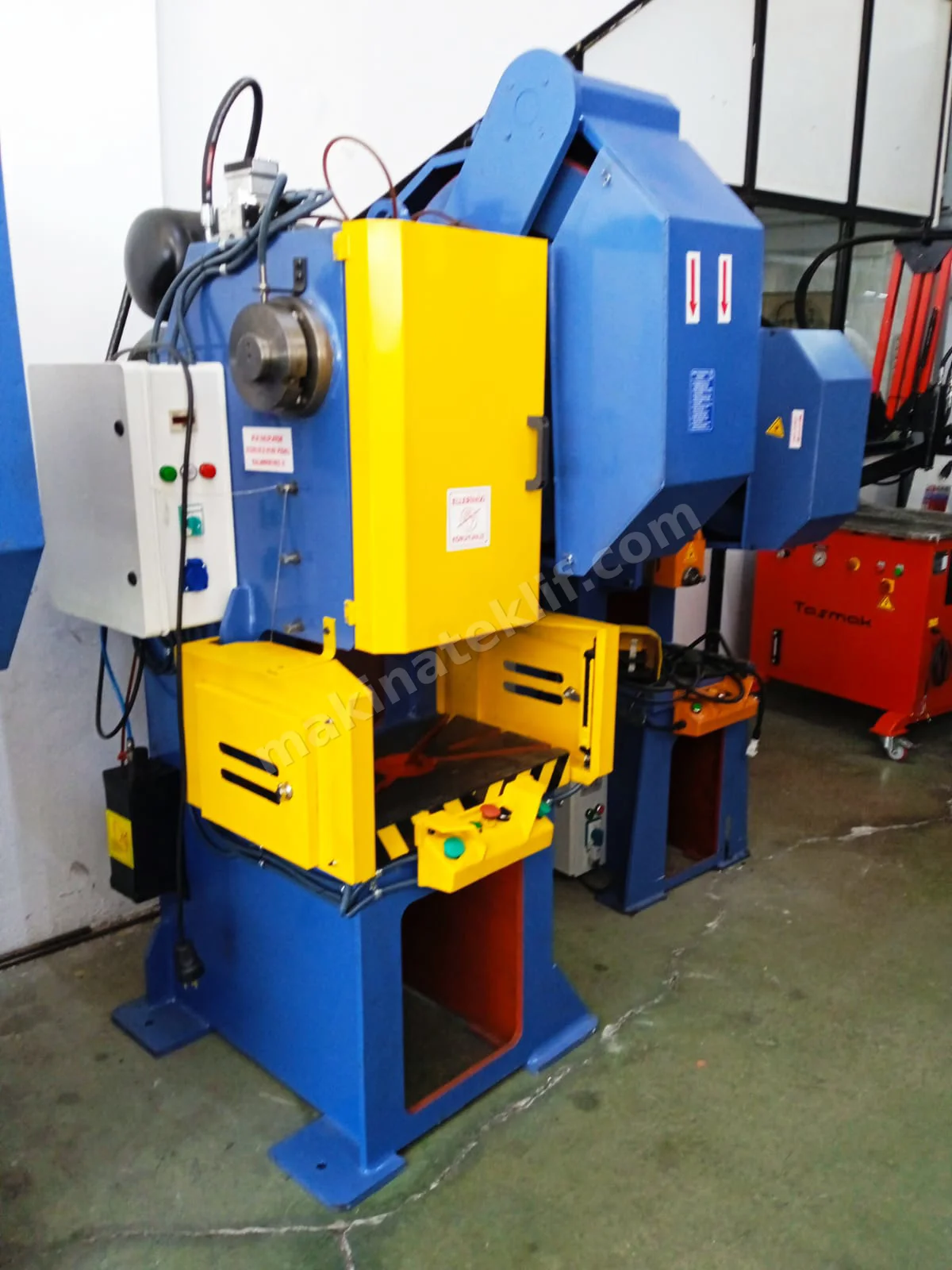

35-Ton Pneumatic-Clutch Eccentric Press – Full, Ready for Immediate Delivery
Listing No
#000083CategoryMechanical PressBrandTezpaListing TypeFor SaleConditionNewOriginTurkiyeDeliveryUp to 7 DaysMin. Order1LocationTurkiye / İstanbul / BaşakşehirListing DateJuly 25, 202613,000 $+ VAT
35-Ton Air-Clutch Eccentric Press Technical Specifications
- Stroke adjustment: 75 mm
- Speed: 100 rpm
- Table size: 370 × 600 mm
- Die mounting distance: 300 mm
- Ram diameter: 35 mm
- Table hole diameter: 125 mm
- Motor power: 2.2 kW (3 HP)
- Machine weight: 1,600 kg
Our press features a platen frame construction.
The control panel is PLC-controlled and the machine is equipped with a centralized lubrication system.
Use EP-2 or EP-3 grease.
Special Accessories and Optional Equipment
- Time-controlled lubrication: Available
- Double-poppet valve: Available
- Hand safety barrier: Available
