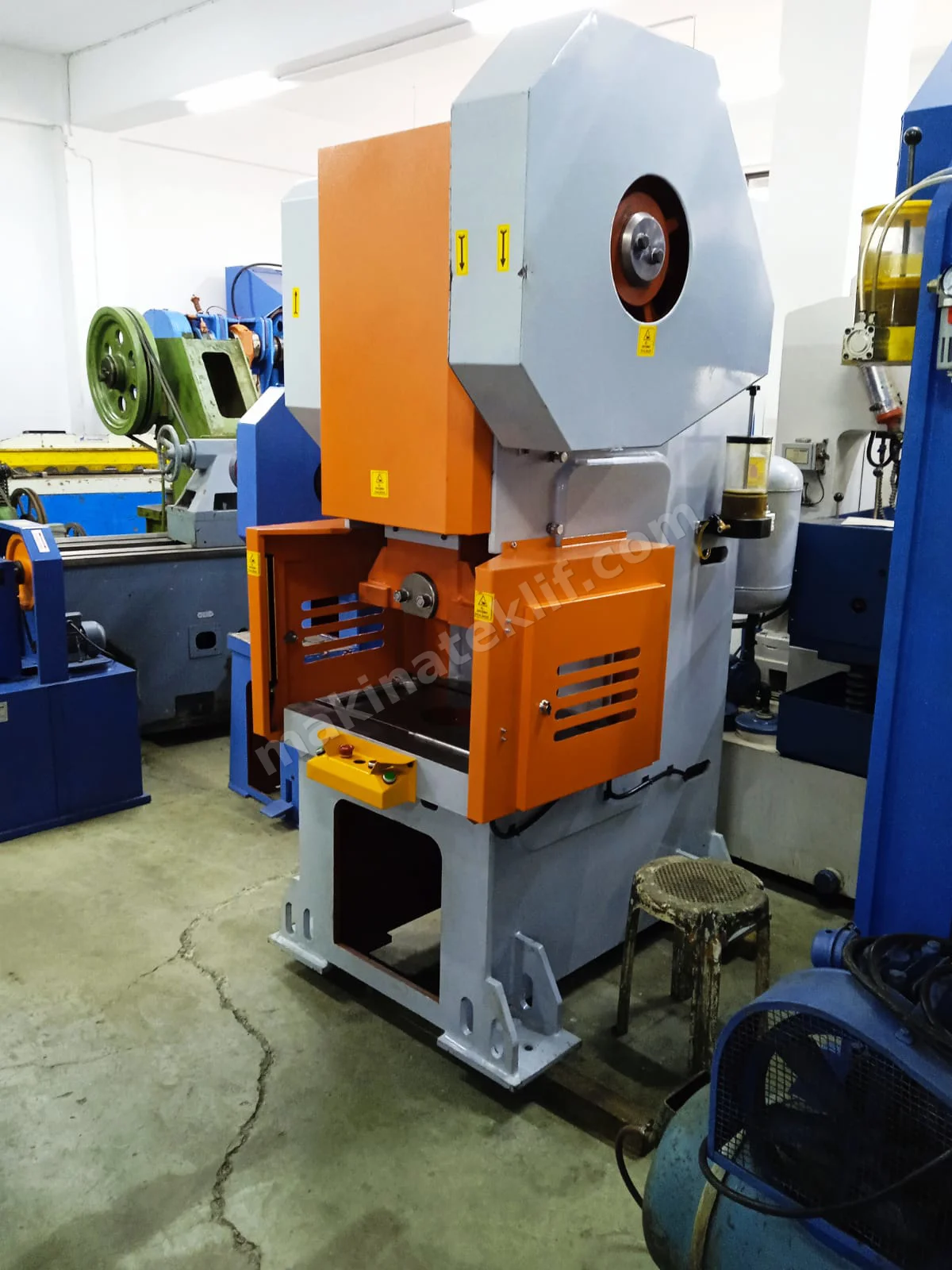

60-Ton Pneumatic-Clutch Eccentric Press (Occupational Safety) – Full, Ready for Immediate Delivery
Listing No
#000082CategoryMechanical PressBrandTezpaListing TypeFor SaleConditionNewOriginTurkiyeDeliveryUp to 7 DaysMin. Order121,000 $+ VAT
TRY1,040,598EUR18,727
60-Ton Geared Air-Clutch Press Technical Specifications
- Stroke adjustment: 10–100 mm
- Speed: 55 rpm
- Table size: 540 × 800 mm
- Die mounting distance: 400 mm
- Ram diameter: 45 mm
- Table hole diameter: 175 mm
- Motor power: 5.5 kW
- Machine weight: 3,300 kg
- Machine dimensions: 1,500 × 2,400 × 1,450 mm
Our press features a platen frame construction. Use EP-2 or EP-3 grease.
Our presses are equipped with an air clutch and a centralized lubrication system.
Special Accessories and Optional Equipment
- Time-controlled lubrication: Available
- Hand safety barrier: Available
- Double-poppet valve: Available
- Motor drive: Speed controller
- Foot pedal: Available
