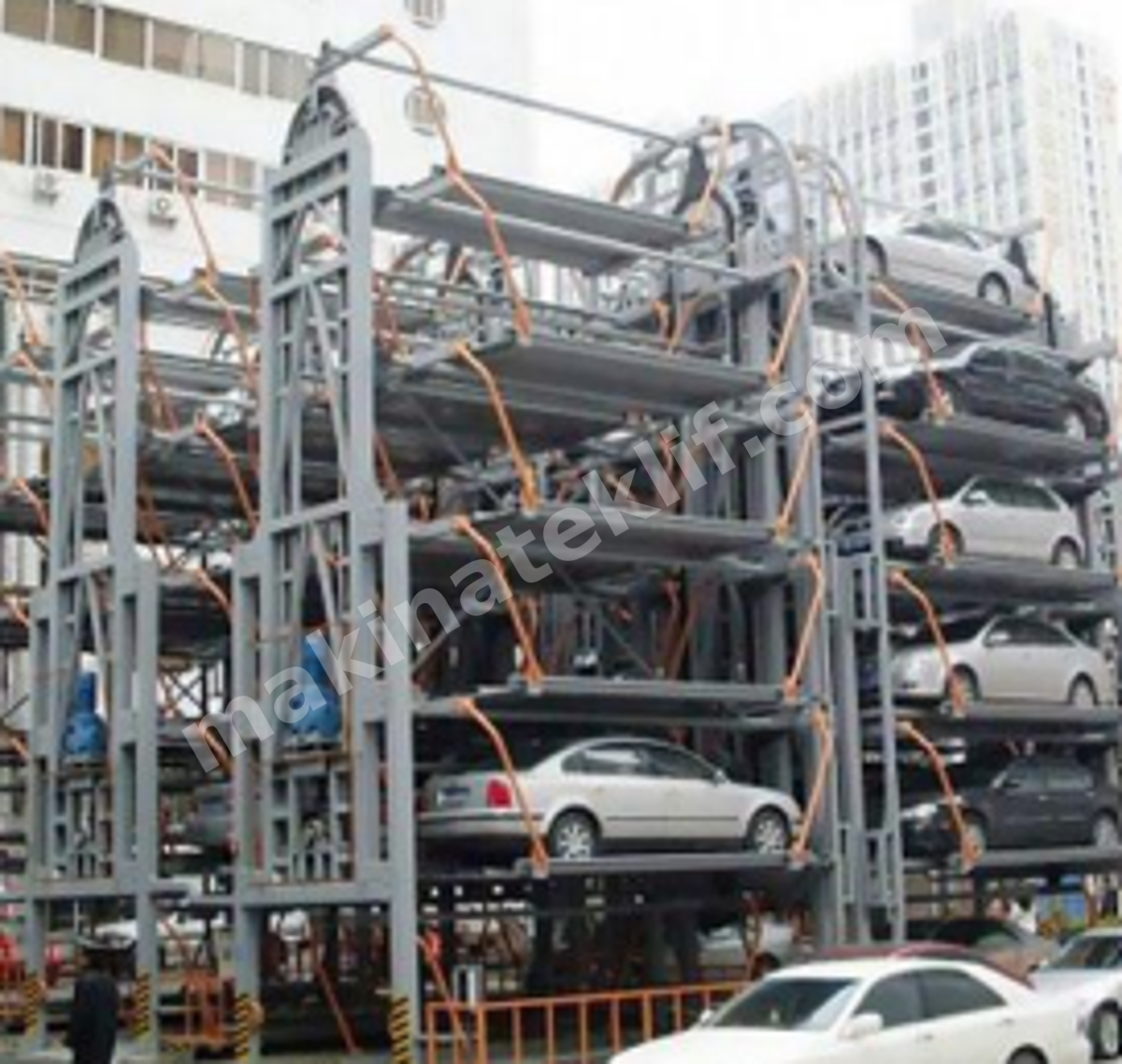

Vertical Rotary Parking System

Operating Principle

The vertical rotary system consists of a gearbox driven by a geared motor and elevators mounted at intervals on chains. All vehicles parked on the elevators, as well as empty elevators, move vertically during the parking or retrieval process.

Advantages

• Simple operation
• Safe operation
• Low noise
• Small space requirement
• Attractive and stylish appearance
• Easy and fast installation
• Suitable for both private and general use

Technical Specifications

• Type: Vertical Rotary Elevator (8-10-12-14-16) / SUV (8-10-12)
• Operating Mode: LCD / IC Card / Manual
• Vehicle Capacity: 2200 kg
• Vehicle Dimensions (L × W × H): 5000 x 1850 x 1550 mm / 5000 x 1850 x 2050 mm
• Lifting Speed: 0.11 m/min
• Warning Device: Yes
• Protection Device: Mechanical motor lock
• Operating Noise: Min.
• Voltage: 380 V
• Motor Power: 11-22 kW
• Fault Indicator: Computerized fault diagnosis with audible warning
• Paint: High-quality corrosion-resistant paint
• Certification: ISO 9001 and CE
