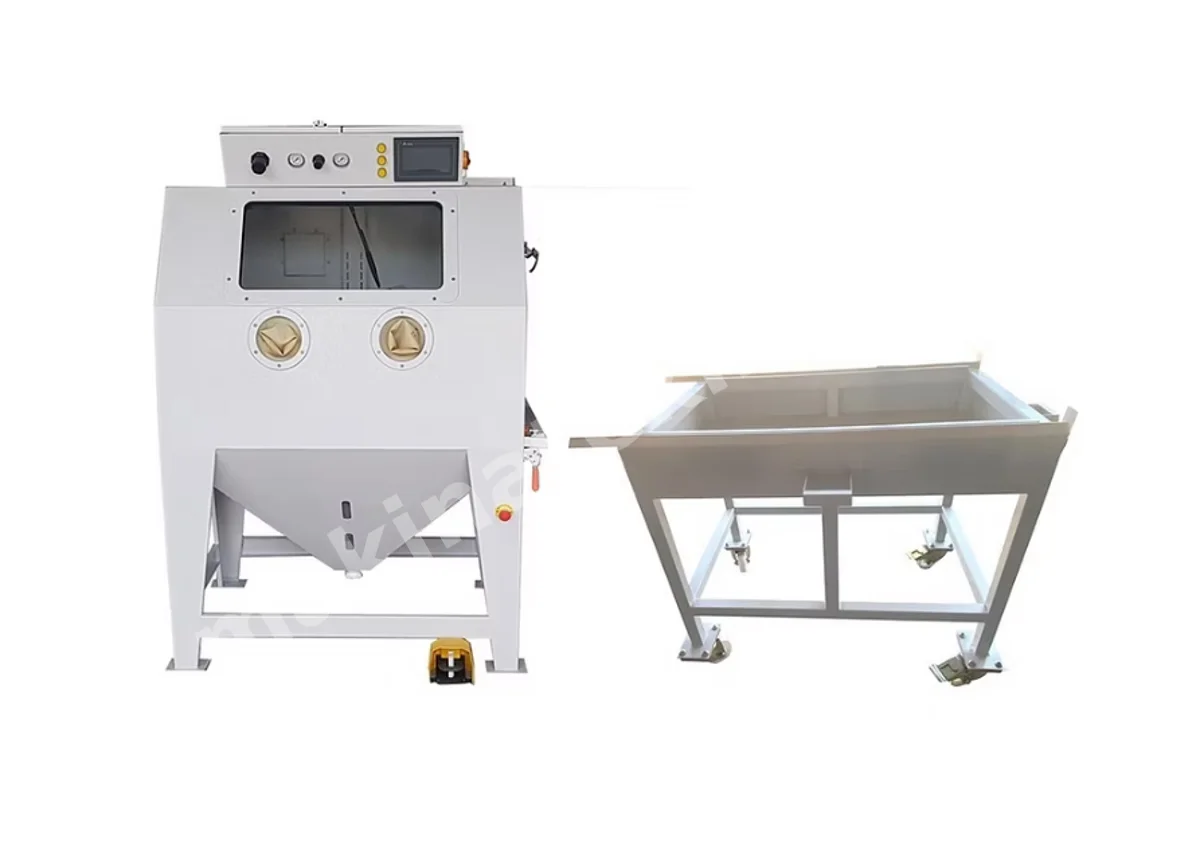

ST9 Manual Portable Wet Blasting Machine with Stand and Rotary Table

Our patented machines are manufactured from 100% stainless steel.

• External Dimensions: 2300 x 1500 x 1900 mm (H)
• Internal Dimensions of Blasting Cabin: 1200 x 1000 x 850 mm (H)
• PLC Touchscreen: Standard
• Blasting System: Manual
• Processing Capacity: 3-4 m²/hour
• Number of Rotary Tables: 1
• Rotary Table Load Capacity: Max. 150 kg
• Rotary Table Diameter: 850 mm
• Transfer Trolley Movement System: Portable stand with rail system
• Loading Door System: Manual
• Number of Nozzles: 1
• Rinsing Tank and Stand: Portable stand
• Abrasive Discharge System: Fully automatic
• Water Supply System: Fully automatic
• Blasting Pressure: 1-10 bar

Thanks to its wet spraying system and advanced filtration system, the machine provides a dust-free and healthy blasting experience. It is the portable stand and portable rotary table version of the ST5 model. Its rinsing tank stand and large rotary table facilitate the loading of heavy and bulky parts into the cabin and their removal after processing.

Our wet blasting machine allows the operator to perform the process manually and is manufactured from 100% stainless steel. Thanks to its smooth-moving rotary table, parts weighing up to 150 kg can be processed with ease. The rinsing gun allows residual wet abrasive material on the parts to be easily removed, preparing the parts for drying with compressed air.

Thanks to the dual rotary table system, while processed parts are removed from the cabin, the other rotary table can be moved into the cabin, preventing downtime and increasing operational efficiency.

The main countries to which we export our wet blasting machines are: Spain, France, Russia, Italy, Ukraine, Argentina, the Netherlands, Poland, and the United States.
